Technical Specifications
| Polymer Type | Polyether Ether Ketone (PEEK) |
| Density | ~1.30 g/cm³ |
| Water Absorption (24h @ 23°C) | < 0.1% |
| Tensile Strength | 90–100 MPa |
| Tensile Modulus | 3.5–4.0 GPa |
| Flexural Strength | 140–165 MPa |
| Continuous Service Temp | -40°C to +250°C |
| Melting Point | ~343°C |
| Coefficient of Friction | ~0.30 |
| UV Resistant | Good |
| Chemical Resistance | Excellent |
| Sterilisation Resistance | Excellent (steam, gamma, EtO) |
| Creep Resistance | Outstanding |

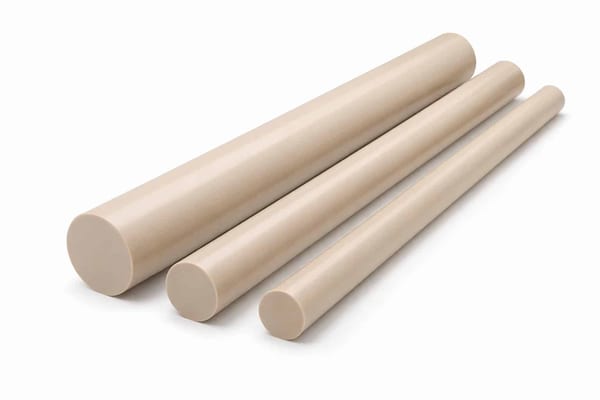

PEEK Rod
PEEK rod is a premium engineering plastic known for its high strength, heat resistance, and chemical stability. Suitable for demanding industrial and machining applications, it maintains performance…
Per-piece pricing for off-the-shelf lengths. Need a custom cut or a shorter length? Email us a quote.
Why choose PEEK Rod?
- Exceptional mechanical and thermal properties
- Continuous use temperature up to 250°C
- Excellent chemical and hydrolysis resistance
- High dimensional stability and wear resistance
- Suitable for sterilization and cleanroom environments
PEEK Rod – Premium High-Performance Engineering Plastic
PEEK (Polyether Ether Ketone) Rod is an advanced engineering thermoplastic renowned for its exceptional mechanical strength, chemical resistance, and high-temperature performance. Ideal for precision components in demanding environments, PEEK rod maintains stability under extreme conditions, including continuous use temperatures up to 250°C.
Used across aerospace, medical, automotive, and industrial sectors, it’s perfect for high-load, high-wear, and chemically aggressive applications.
Key Features:
Available in various diameters and lengths for precision machining.
Ready to order your PEEK Rod?
Cut to size, precision finished and dispatched Australia-wide. Not sure which material suits your job? We'll help you choose the right one.
Related Products
Technical Specifications
| Polymer Type | Polyether Ether Ketone (PEEK) |
| Density | ~1.30 g/cm³ |
| Water Absorption (24h @ 23°C) | < 0.1% |
| Tensile Strength | 90–100 MPa |
| Tensile Modulus | 3.5–4.0 GPa |
| Flexural Strength | 140–165 MPa |
| Continuous Service Temp | -40°C to +250°C |
| Melting Point | ~343°C |
| Coefficient of Friction | ~0.30 |
| UV Resistant | Good |
| Chemical Resistance | Excellent |
| Sterilisation Resistance | Excellent (steam, gamma, EtO) |
| Creep Resistance | Outstanding |
Frequently Asked Questions
What is PEEK rod used for?
What diameters of PEEK rod are available?
Does PEEK rod machine well?
Can you machine finished PEEK parts for us?
Is PEEK worth it over acetal or nylon?
Need this custom cut or fabricated?
Send us your drawing (DXF, DWG, PDF, EPS, STEP) and we'll quote your PEEK Rod to spec.
