Technical Specifications
| Polymer Type | Polyether Ether Ketone (PEEK) |
| Density | ~1.30 g/cm³ |
| Water Absorption (24h @ 23°C) | < 0.1% |
| Tensile Strength | 90–100 MPa |
| Tensile Modulus | 3.5–4.0 GPa |
| Flexural Strength | 140–165 MPa |
| Elongation at Break | 20–40% |
| Impact Strength (Charpy, notched) | 5–10 kJ/m² |
| Continuous Service Temp | -40°C to +250°C |
| Short-Term Max Temp | Up to ~300°C |
| Coefficient of Friction | ~0.30 |
| Thermal Conductivity | ~0.25 W/m·K |
| UV Resistance | Good |
| Weather Resistance | Good |
| Chemical Resistance | Excellent |
| Wear Resistance | Excellent |
| Sterilisation Resistance | Excellent (steam, gamma, EtO) |

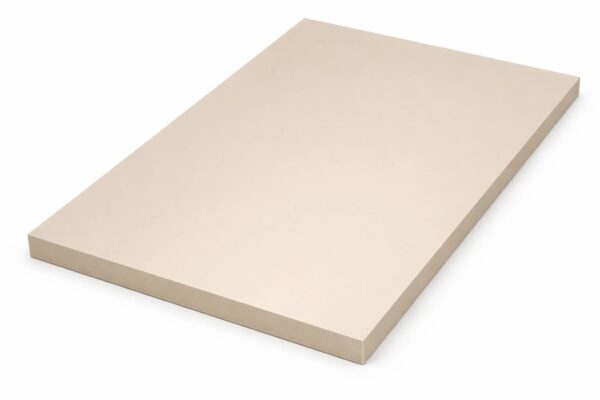

PEEK Sheet
PEEK sheets are flat panels made from polyether ether ketone (PEEK), a high-performance thermoplastic known for its strength-to-weight ratio, chemical resistance, and temperature stability up to…
Optional finishing services - toggle any you need.
Optional. Add drilled holes to your piece.
Acrylic only - optical-grade edge finish
Pick which edges to polish.
Flame polish is only available on acrylic.
Manual router - per-corner price scales with thickness
Rounded or 45 degree bevel - per-metre rate x thickness
Why choose PEEK Sheet?
Key Features:

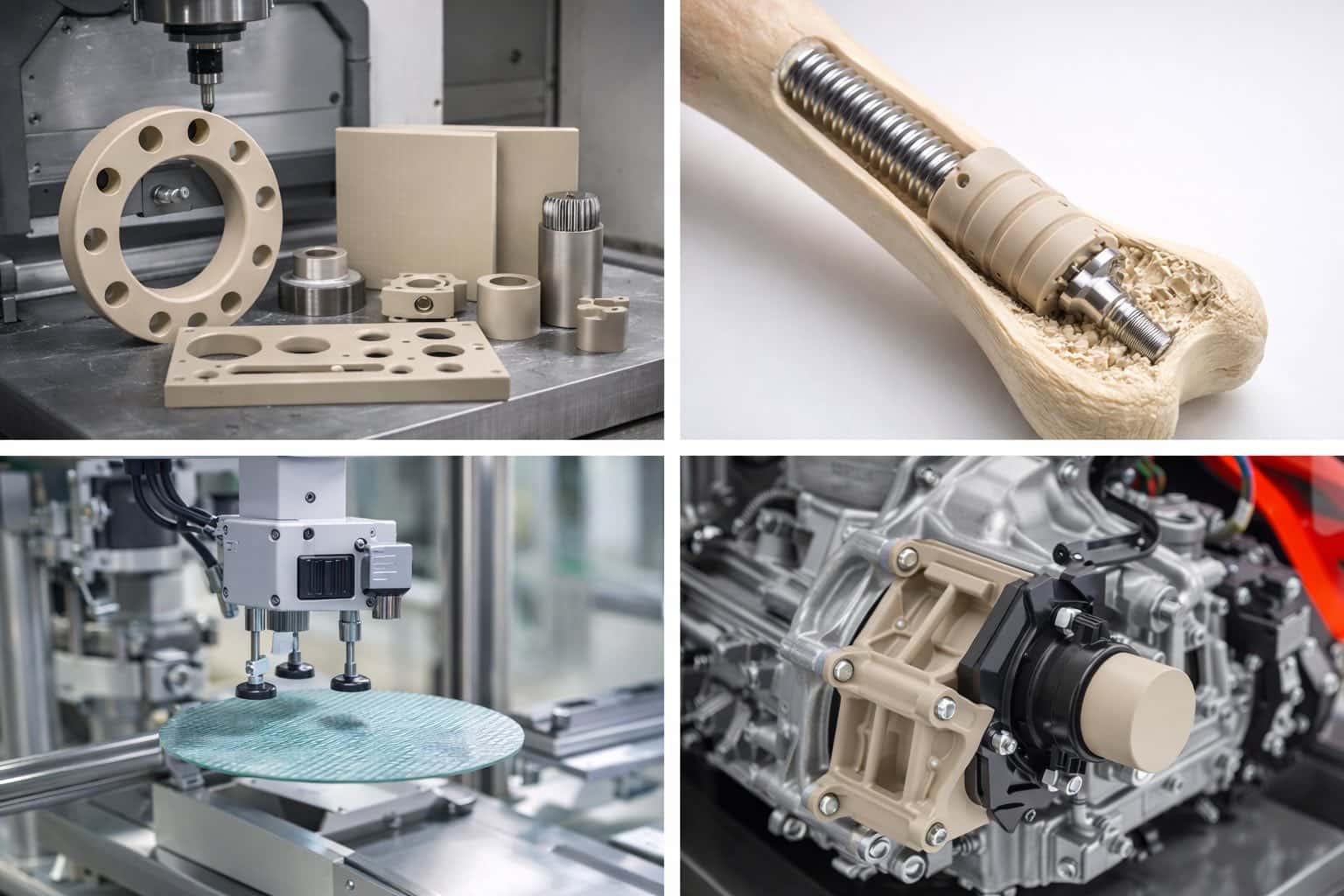

Typical Applications:
- Exceptional Mechanical Strength – Maintains rigidity under high loads and temperatures
- High Temperature Resistance – Continuous use up to 250°C
- Excellent Chemical Resistance – Resistant to solvents, acids, and hydrocarbons
- Low Moisture Absorption – Stable in wet and humid conditions
- FDA & USP Class VI Grades Available – Suitable for food and medical applications
- Excellent Wear & Abrasion Resistance – Ideal for sliding or high-friction components
- Precision components in aerospace and automotive
- High-performance seals, bushings, and bearings
- Semiconductor and electronics manufacturing parts
- Medical instruments and implants (medical-grade PEEK)
- Pump and valve components exposed to harsh chemicals
Our PEEK Sheets deliver outstanding performance in extreme environments where strength, thermal stability, and chemical resistance are critical. Known as one of the highest-performing thermoplastics available, PEEK offers exceptional mechanical properties, making it the preferred material in aerospace, medical, oil & gas, and advanced manufacturing industries.
Ready to order your PEEK Sheet?
Cut to size, precision finished and dispatched Australia-wide. Not sure which material suits your job? We'll help you choose the right one.
Related Products
Technical Specifications
| Polymer Type | Polyether Ether Ketone (PEEK) |
| Density | ~1.30 g/cm³ |
| Water Absorption (24h @ 23°C) | < 0.1% |
| Tensile Strength | 90–100 MPa |
| Tensile Modulus | 3.5–4.0 GPa |
| Flexural Strength | 140–165 MPa |
| Elongation at Break | 20–40% |
| Impact Strength (Charpy, notched) | 5–10 kJ/m² |
| Continuous Service Temp | -40°C to +250°C |
| Short-Term Max Temp | Up to ~300°C |
| Coefficient of Friction | ~0.30 |
| Thermal Conductivity | ~0.25 W/m·K |
| UV Resistance | Good |
| Weather Resistance | Good |
| Chemical Resistance | Excellent |
| Wear Resistance | Excellent |
| Sterilisation Resistance | Excellent (steam, gamma, EtO) |
Frequently Asked Questions
What is PEEK?
What is PEEK material used for?
Why is PEEK so expensive?
Can PEEK be machined?
PEEK or PTFE, which should I choose?
Need this custom cut or fabricated?
Send us your drawing (DXF, DWG, PDF, EPS, STEP) and we'll quote your PEEK Sheet to spec.
