Technical Specifications
| Material Type | High Density Polyethylene (HDPE / PE-HD) |
| Checker Plate Grade | Polystone PG100 (PE100) - UV resistant, slip resistant finish one side |
| Density | 0.96 g/cm3 |
| Tensile Strength | 24 MPa (checker plate grade) |
| Flexural Strength | ~30 MPa |
| Impact Strength | Very high (non-brittle) |
| Hardness | Shore D 65-70 |
| Min Operating Temperature | -50 C |
| Max Continuous Service Temp | 80 C |
| Melting Point | ~130 C |
| Water Absorption | <0.01% |
| Chemical Resistance | Excellent - resistant to most acids, alkalis, solvents |
| UV Resistance | Good (UV-stabilised grades available in black and yellow) |
| Coefficient of Friction | 0.15 |
| Thermal Expansion | 150-230 um/m.K |
| Slip Resistance | Meets AS and DIN slip resistant standards (checker plate) |
| Food Grade | Yes (black checker plate is food grade) |
| Drinking Water Approved | Yes |
| DVS Compliant | Yes (meets highest standards for tank fabrication) |
| Electrical Insulation | Excellent |
| Weather Resistance | Excellent |
Certifications & Downloads

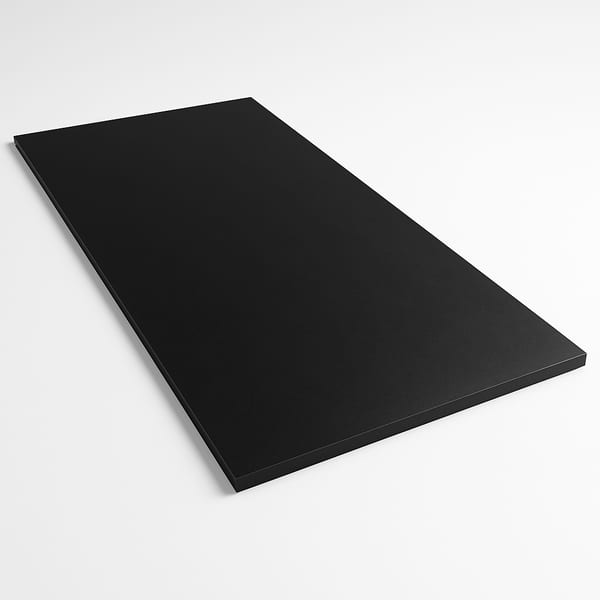

HDPE Sheet

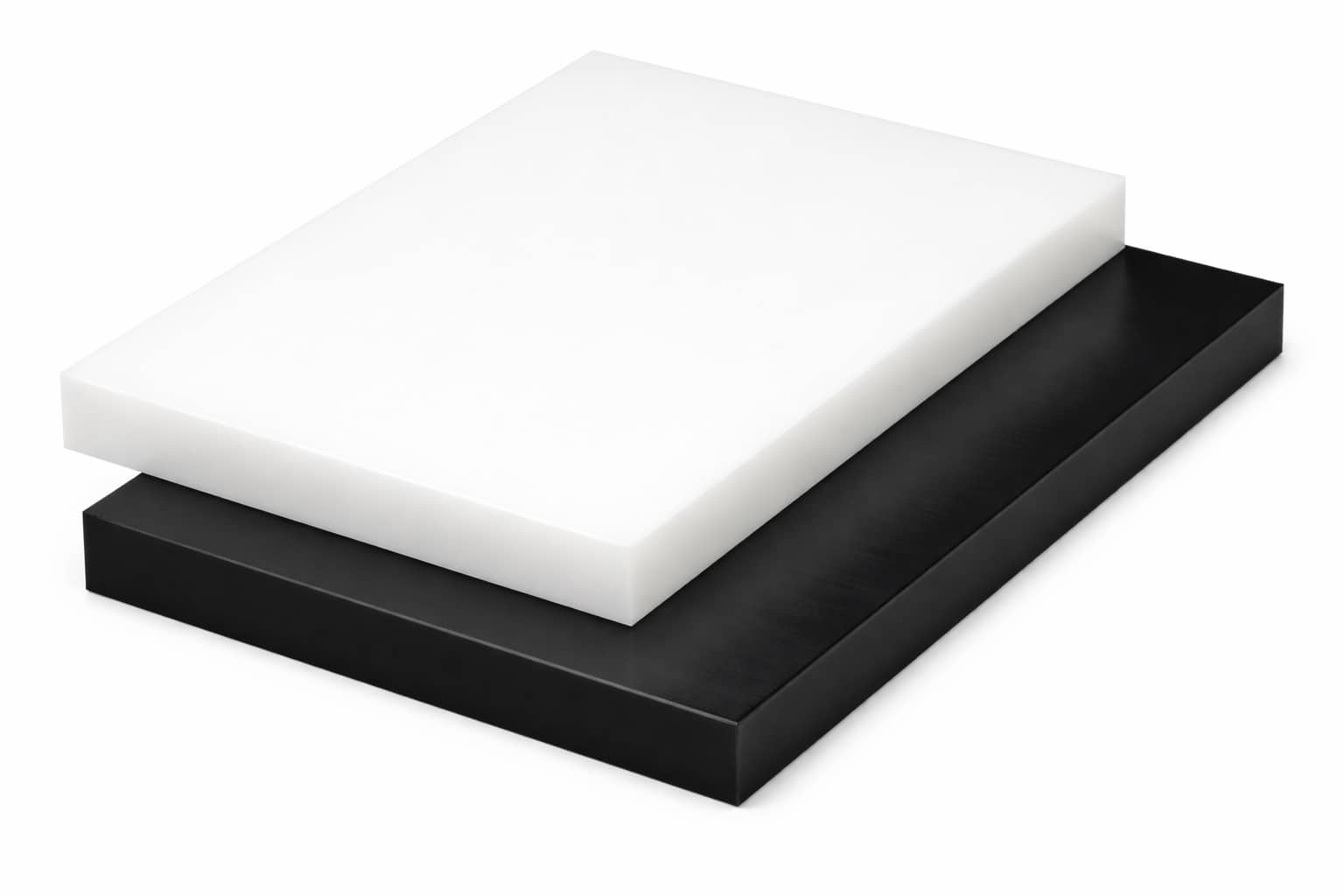

Black & White HDPE Sheets (1.5mm – 60mm)
Optional finishing services - toggle any you need.
Optional. Add drilled holes to your piece.
Acrylic only - optical-grade edge finish
Pick which edges to polish.
Flame polish is only available on acrylic.
Manual router - per-corner price scales with thickness
Rounded or 45 degree bevel - per-metre rate x thickness
Why choose HDPE Sheet?
Benefits of HDPE Polyethylene
Applications
Colour and Features
Can’t find the exact size?
- Chemical and Moisture Resistance: HDPE is highly resistant to chemicals and water, ensuring long-lasting performance in tough environments.
- Impact Strength: It can withstand heavy impacts without cracking or breaking, making it suitable for high-stress applications.
- Weatherproof Properties: With excellent UV resistance, HDPE performs reliably under prolonged outdoor exposure.
- Industrial Components: Commonly used for tanks, pipes, and liners due to its chemical resistance and durability.
- Cutting Boards: Food-grade HDPE is ideal for hygienic and long-lasting cutting surfaces in kitchens and food processing.
- Outdoor Signage and Structures: Suitable for weatherproof signs, playground equipment, and marine applications.

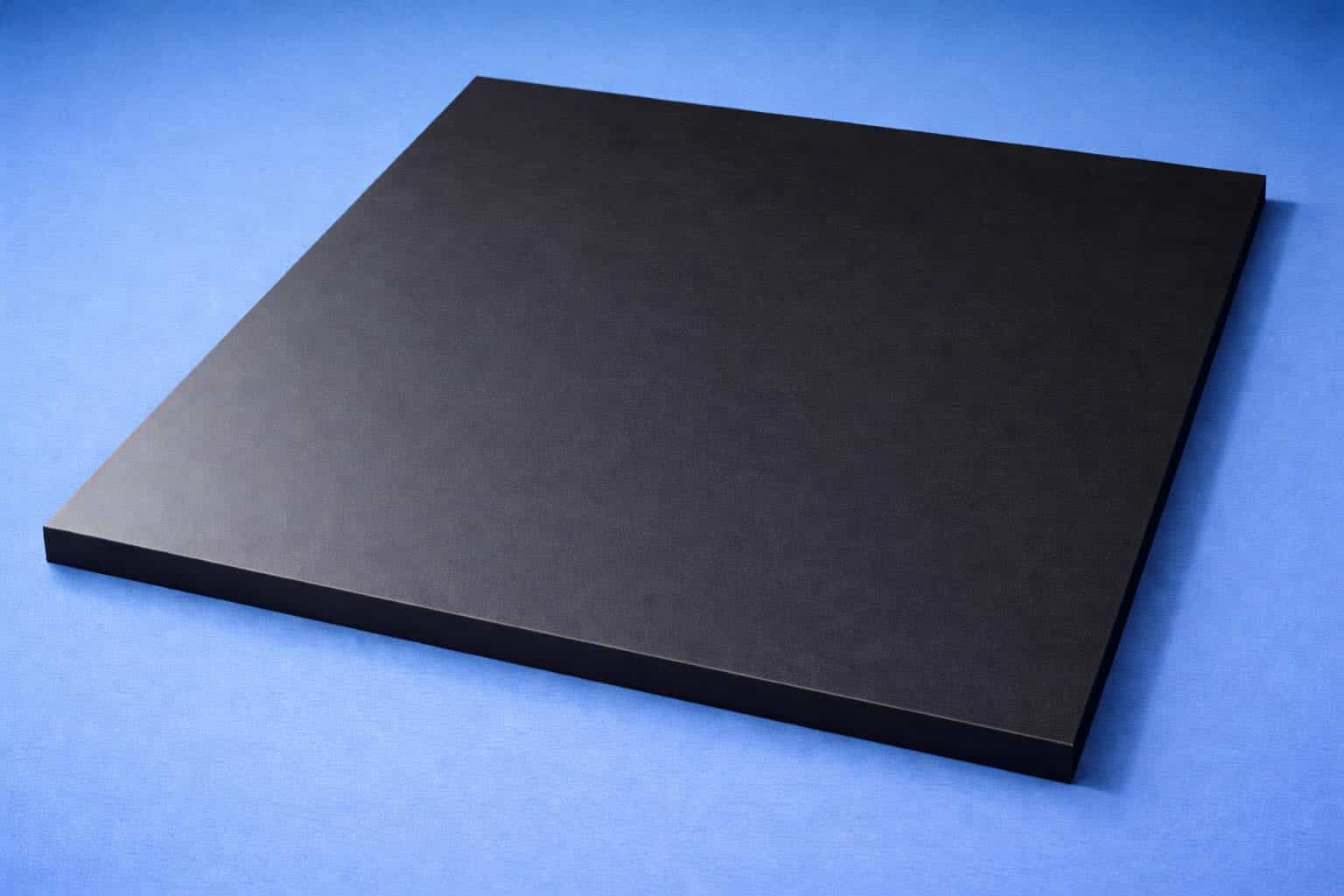

- Black
- Natural
- We will cut any size you need. Request a custom quote!
- Get a quick quote using our Online Pricing Calculator 🧮
HDPE (High-Density Polyethylene) Polyethylene is a durable and versatile thermoplastic known for its high strength-to-density ratio. It is lightweight, impact-resistant, and resistant to moisture, chemicals, and UV exposure, making it ideal for both indoor and outdoor applications. This material provides exceptional durability while remaining cost-effective.
Natural HDPE Cutting Boards – The Hygienic Choice for Food Prep
Natural HDPE (High-Density Polyethylene) cutting boards are a top choice in commercial kitchens and home cooking alike. Their dense, non-porous surface resists moisture, bacteria, and staining, making them exceptionally hygienic and easy to clean. Unlike wood, HDPE won’t absorb liquids or retain odors, and it's gentle on knife edges to help keep blades sharper for longer. Durable, food-safe, and dishwasher-friendly, HDPE cutting boards offer long-lasting performance and peace of mind for safe food handling.
As specialists in plastic, we also offer fabrication and manufacturing solutions. LET'S TALK!
Ready to order your HDPE Sheet?
Cut to size, precision finished and dispatched Australia-wide. Not sure which material suits your job? We'll help you choose the right one.
Technical Specifications
| Material Type | High Density Polyethylene (HDPE / PE-HD) |
| Checker Plate Grade | Polystone PG100 (PE100) - UV resistant, slip resistant finish one side |
| Density | 0.96 g/cm3 |
| Tensile Strength | 24 MPa (checker plate grade) |
| Flexural Strength | ~30 MPa |
| Impact Strength | Very high (non-brittle) |
| Hardness | Shore D 65-70 |
| Min Operating Temperature | -50 C |
| Max Continuous Service Temp | 80 C |
| Melting Point | ~130 C |
| Water Absorption | <0.01% |
| Chemical Resistance | Excellent - resistant to most acids, alkalis, solvents |
| UV Resistance | Good (UV-stabilised grades available in black and yellow) |
| Coefficient of Friction | 0.15 |
| Thermal Expansion | 150-230 um/m.K |
| Slip Resistance | Meets AS and DIN slip resistant standards (checker plate) |
| Food Grade | Yes (black checker plate is food grade) |
| Drinking Water Approved | Yes |
| DVS Compliant | Yes (meets highest standards for tank fabrication) |
| Electrical Insulation | Excellent |
| Weather Resistance | Excellent |
Certifications & Downloads
Frequently Asked Questions
What is HDPE sheet?
Is HDPE food safe?
How do you cut HDPE sheet?
What is the difference between HDPE and UHMWPE?
Can HDPE be used outdoors?
What is HDPE checker plate?
Can you glue HDPE?
What thicknesses does HDPE sheet come in?
My spec says PE300, PE500, or PE1000. What do I order?
Need this custom cut or fabricated?
Send us your drawing (DXF, DWG, PDF, EPS, STEP) and we'll quote your HDPE Sheet to spec.
What you can make with HDPE Sheet
UHMWPE Wear Pads
Custom UHMWPE wear pads and slide plates engineered for chutes, conveyors and material-handling equipment. Exceptional abrasion resistance, self-lubricating properties and CNC machined to your drawings with fixing holes.
Mining Machine Guards & Safety Screens
Heavy-duty polycarbonate and HDPE machine guards for mining equipment, crushers, conveyors, and processing plants. Impact-resistant, cut to size, and delivered Australia-wide.
Bearings & Rollers
Turned nylon, acetal, and UHMWPE bearings and guide rollers.
Cutting Boards
Food-grade HDPE boards for commercial kitchens and processing.
Air Conditioner Covers
Custom cut acrylic, polycarbonate and HDPE air conditioner covers. Screen outdoor units, protect from weather and keep airflow clear. Cut to size, shipped Australia-wide.
Chemical Tanks
PVC fabricated tanks for aggressive chemical storage and dosing.
Conveyor Components
Wear-resistant guides, idlers, and return rollers from engineering rod.
Bus & Coach Parts
Machined rod and tube for grab rails, bushings, and transit fittings.
