Technical Specifications
| Polymer Type | Polymethyl Methacrylate (PMMA) |
| Density | ~1.19 g/cm³ |
| Light Transmission | ~92% |
| Water Absorption (24h @ 23°C) | ~0.3% |
| Tensile Strength | 60–70 MPa |
| Tensile Modulus | 2.8–3.3 GPa |
| Flexural Strength | 90–110 MPa |
| Continuous Service Temp | -40°C to +80°C |
| Vicat Softening Temp | ~105°C |
| UV Resistance | Excellent |
| Weather Resistance | Excellent |
| Chemical Resistance | Good to dilute acids/alkalis, poor to solvents |
Certifications & Downloads

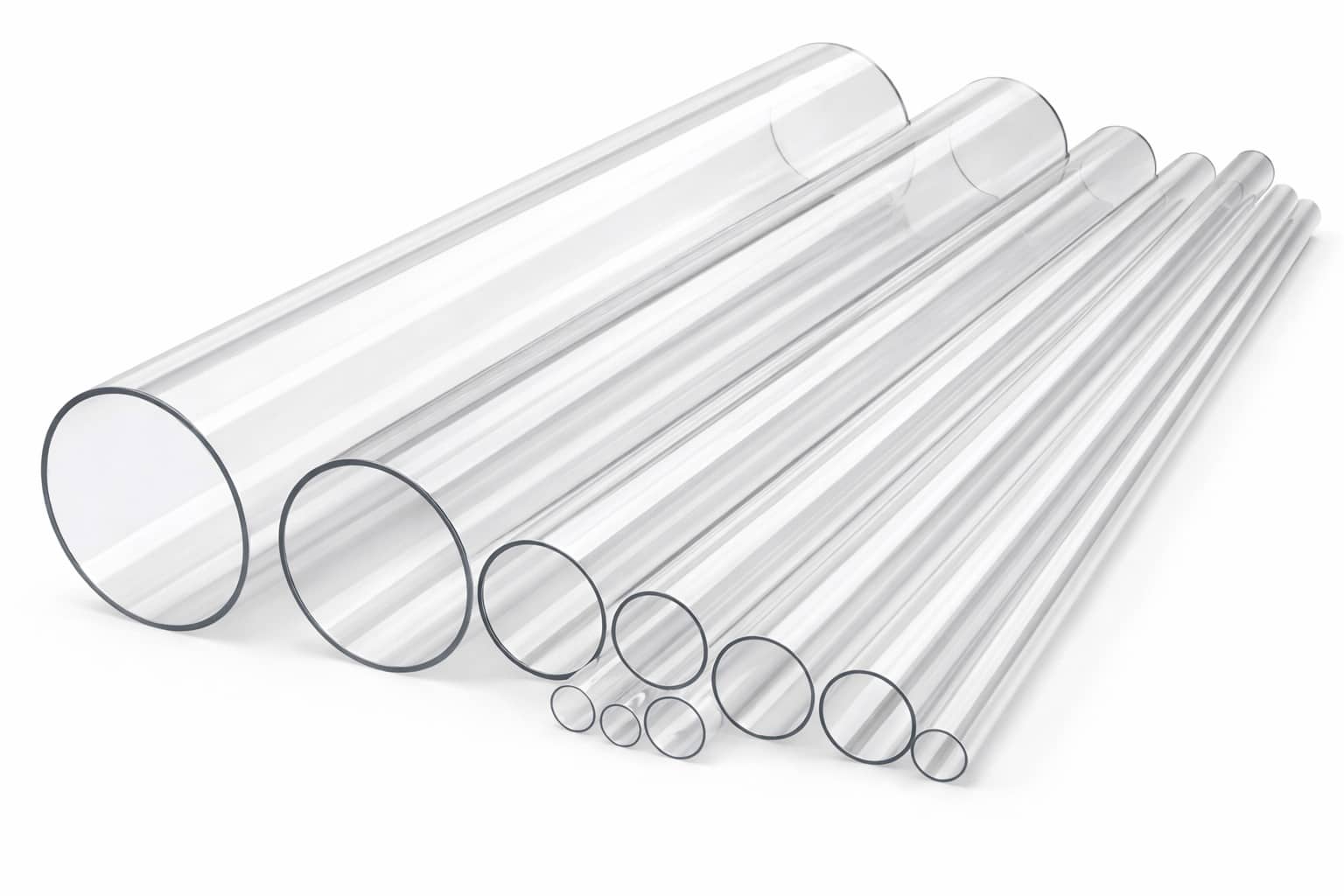

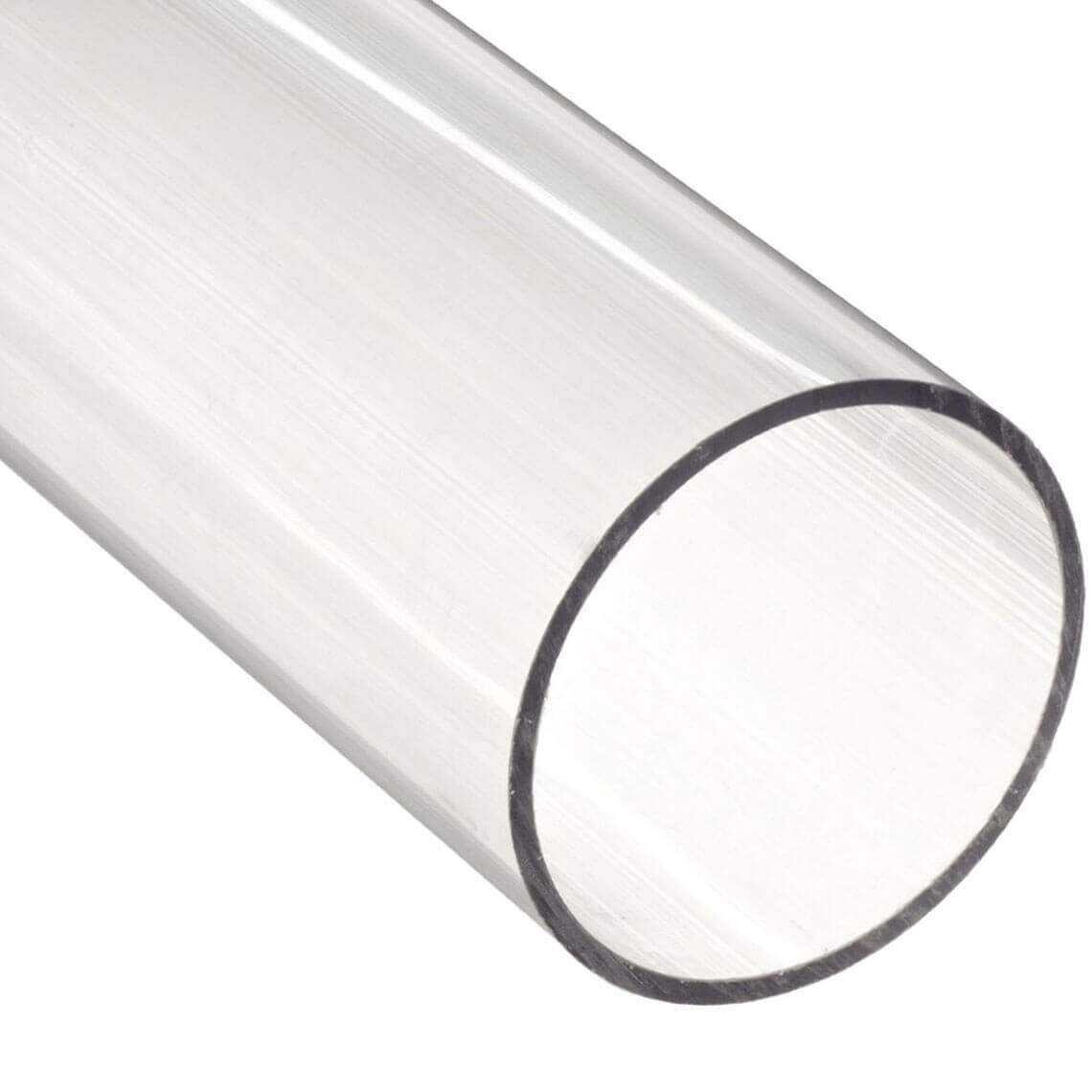

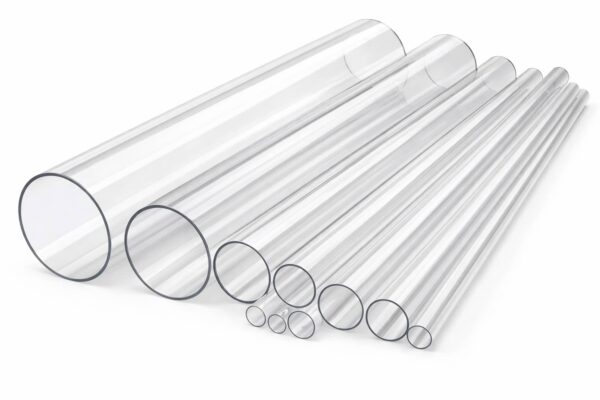

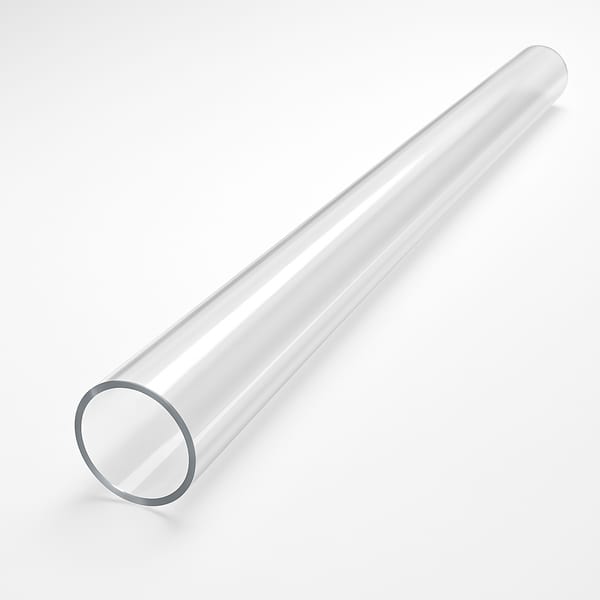

Acrylic Clear Tubes
Perspex Online supplies high-quality acrylic clear tubes that combine strength, light weight, and excellent optical clarity. Ideal for displays, covers, DIY projects, and fabrication work, our tubes…
Per-piece pricing for off-the-shelf lengths. Need a custom cut or a shorter length? Email us a quote.
Why choose Acrylic Clear Tubes?
Benefits of Acrylic Clear Tubes
Applications
Specifications:
Care and Maintenance:
Explore Our Range of Acrylic Tubes
Can’t find the exact size?
- High Clarity: Acrylic Clear Tubes provide exceptional transparency, similar to glass, but with greater durability and safety.
- Impact Resistance: Unlike glass, acrylic tubes are highly resistant to impact, reducing the risk of breakage.
- Lightweight: Acrylic is much lighter than glass, making it easier to handle and install.
- UV Resistance: Acrylic Clear Tubes are resistant to UV radiation, making them suitable for outdoor applications without yellowing or degrading over time.
- Easy Fabrication: These tubes can be easily cut, drilled, and shaped to meet specific project requirements.
- Display and Signage: Acrylic Clear Tubes are ideal for creating eye-catching displays, signage, and exhibition stands due to their clarity and durability.
- Lighting: Used in LED lighting, light diffusers, and decorative lighting applications for their excellent light transmission properties.
- Laboratory Equipment: Commonly used in lab settings for test tubes, sample holders, and other transparent equipment.
- Aquariums and Terrariums: Their clarity and strength make acrylic tubes perfect for custom aquariums and terrariums.
- Architectural and Interior Design: Used in architectural models, partitions, and decorative elements for their aesthetic appeal and versatility.
- Material: Cast Acrylic (PMMA) – Known for its superior optical clarity, durability, and resistance to UV radiation and weathering.
- Colour: Crystal Clear – Provides excellent transparency, making it ideal for applications where visibility and light transmission are critical.
- Diameter Range: Customisable from small to large diameters to suit a wide range of applications, from precision components to large-scale installations.
- Wall Thickness: Available in various thicknesses (e.g., 1mm to 10mm or more) to meet specific strength and durability requirements for different uses.
- Length: Standard lengths are available, but custom lengths can be produced to fit unique project needs.
- Surface Finish: Smooth, polished finish for maximum clarity and aesthetic appeal.
- Temperature Resistance: Can withstand temperatures from -40°C to +80°C, making it suitable for both indoor and outdoor use.
- UV Resistance: UV-stabilized to prevent yellowing or degradation when exposed to sunlight, ensuring long-term clarity and performance.
- Cleaning: Clean with a soft, lint-free cloth and a mild soap solution. Avoid using abrasive materials or harsh chemicals that could scratch or damage the surface.
- Avoid Solvents: Do not use solvents like acetone, alcohol, or ammonia-based cleaners, as they can cause cracking or clouding.
- Polishing: To maintain the clarity and shine of acrylic tubes, use a plastic polish or acrylic cleaner for occasional touch-ups.
- Storage: Store in a cool, dry place away from direct sunlight or heat sources to prevent warping or surface damage.
- Handling: Handle with care to avoid scratches. Use gloves to prevent fingerprints and smudges during installation or fabrication.
- We will cut any size you need. Request a custom quote!
- Get a quick quote using our Online Pricing Calculator 🧮
Acrylic Clear Tubes are made from high-quality polymethyl methacrylate (PMMA), a transparent thermoplastic known for its clarity, strength, and versatility. These tubes offer excellent optical properties, making them a popular choice for applications requiring transparency and durability. Acrylic Clear Tubes are lightweight, impact-resistant, and easy to fabricate, making them suitable for a wide range of industrial, commercial, and creative uses.

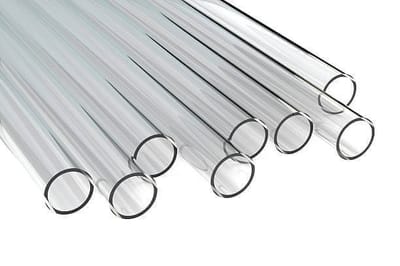

Acrylic Clear Tube Imperial: Experience quality craftsmanship with our Acrylic Clear Tube Imperial. Available at competitive prices, this product provides excellent value for your investment.

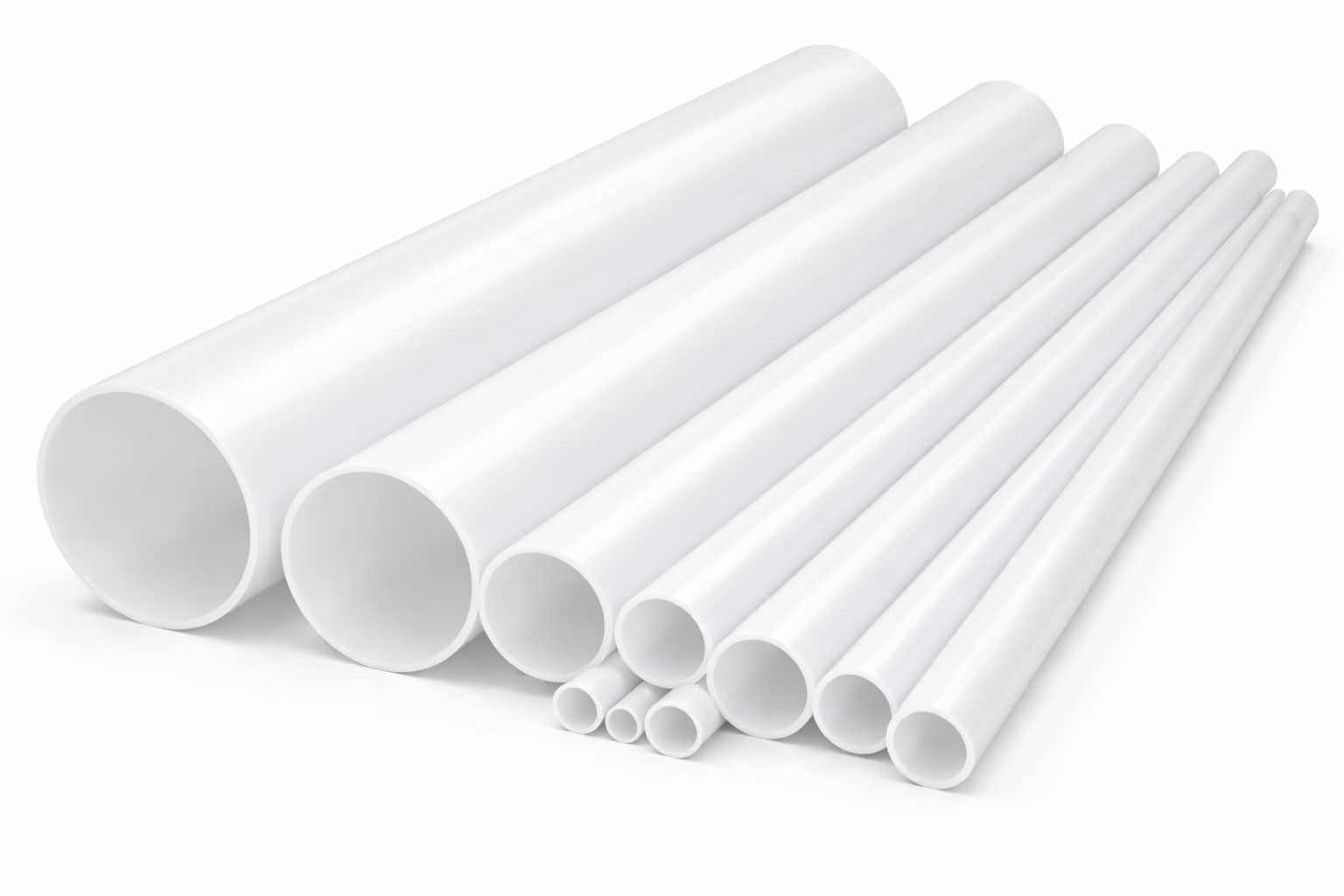

Acrylic OPAL Tube : For designs that require a touch of opulence, explore our Acrylic OPAL Tube range. Unparalleled clarity and opalescent beauty make these tubes a standout choice.
Acrylic Square Tubes: Bring a modern touch to your designs with Acrylic Square Tubes. The perfect combination of form and function, these tubes add a contemporary flair to any project.
Polycarbonate Tube: If you're seeking a material known for its strength and impact resistance, our Polycarbonate Tube selection is an excellent choice. Explore the range for enhanced durability.
As specialists in plastic, we also offer design and manufacturing solutions. LET'S TALK!
Ready to order your Acrylic Clear Tubes?
Cut to size, precision finished and dispatched Australia-wide. Not sure which material suits your job? We'll help you choose the right one.
Related Products
Technical Specifications
| Polymer Type | Polymethyl Methacrylate (PMMA) |
| Density | ~1.19 g/cm³ |
| Light Transmission | ~92% |
| Water Absorption (24h @ 23°C) | ~0.3% |
| Tensile Strength | 60–70 MPa |
| Tensile Modulus | 2.8–3.3 GPa |
| Flexural Strength | 90–110 MPa |
| Continuous Service Temp | -40°C to +80°C |
| Vicat Softening Temp | ~105°C |
| UV Resistance | Excellent |
| Weather Resistance | Excellent |
| Chemical Resistance | Good to dilute acids/alkalis, poor to solvents |
Certifications & Downloads
Frequently Asked Questions
What are clear acrylic tubes used for?
How clear are acrylic tubes compared to polycarbonate tubes?
Acrylic tubes offer excellent optical clarity and a high-gloss finish, superior to polycarbonate. Polycarbonate is tougher and more impact-resistant, but acrylic is preferred where visual clarity and appearance are more important than impact strength.
Can clear acrylic tubes be cut and machined?
Yes. Acrylic tubes can be cut, drilled, and machined using standard tools or CNC equipment. They can also be polished to achieve a clear, smooth edge. Care is required to avoid cracking, and correct speeds and sharp tools are essential.
Are acrylic tubes suitable for outdoor use?
What sizes are available for clear acrylic tubes?
Need this custom cut or fabricated?
Send us your drawing (DXF, DWG, PDF, EPS, STEP) and we'll quote your Acrylic Clear Tubes to spec.
What you can make with Acrylic Clear Tubes

Acrylic Shower Wall Panels
Grout-free acrylic shower wall panels and splashback surrounds for seamless, waterproof bathroom finishes. DIY-friendly cut-to-size panels in clear, colour and tinted options.

Acrylic Light Diffuser Panels
Opal and diffuser acrylic and polycarbonate panels for even LED light spread in troffers, signage, and ceiling installations. Cut-to-size service available.

Acrylic Aquarium Panels
Discover clear cast acrylic panels for custom aquariums, terrariums and reptile enclosures. Learn why cast acrylic beats glass for DIY builds and how to achieve seamless joints with solvent bonding.

Acrylic Splashbacks
Custom acrylic splashback panels cut to size for kitchens, bathrooms, and laundries. Available in any colour, with clean seamless installation and no grout lines.

Acrylic Privacy Screens
Custom acrylic and polycarbonate privacy screens cut to size for balconies, fences, offices, and outdoor living areas. Frosted, tinted, and clear options available Australia-wide.

Amusement Glass
Replacement acrylic panels for arcade, pinball, and vending machines.

Display Cabinets
Clear acrylic tube and sheet display cases for retail and museums.

Acrylic Domes
Thermoformed and machined tube for dome covers and display bubbles.
