Technical Specifications
| Material Type | Cell Cast Acrylic (PMMA) |
| Brand | PERSPEX® |
| Grade | VA / VE – Gallery Grade |
| Optical Clarity | Excellent (≈92% light transmission for clear) |
| Surface Finish | High-gloss, exhibition-quality |
| Density | ~1.19 g/cm³ |
| Tensile Strength | ~70 MPa |
| Flexural Strength | ~110 MPa |
| Maximum Continuous Service Temp | ~80–90 °C |
| Vicat Softening Temperature | ~105 °C |
| UV Resistance | Excellent (won’t yellow under normal exposure) |
| Weather Resistance | Excellent – suitable for long-term indoor & outdoor use |
| Chemical Resistance | Good resistance to dilute acids and alkalis; poor to solvents |
Certifications & Downloads

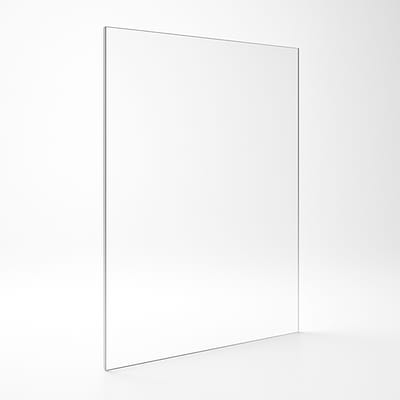

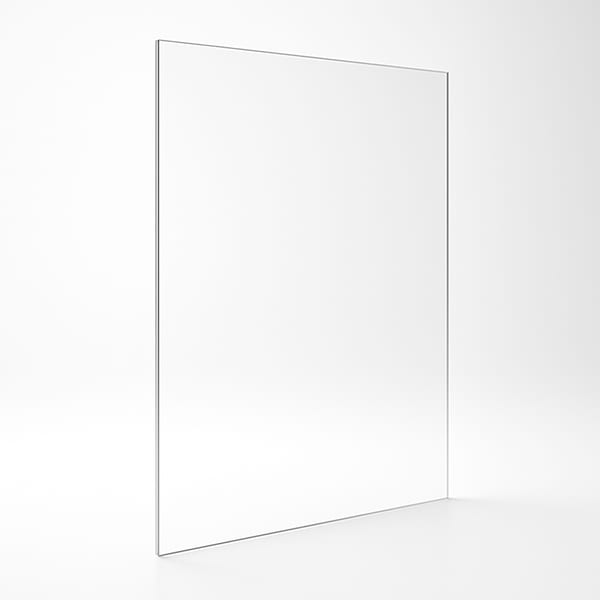

PERSPEX® VA/VE Gallery Grade
PERSPEX® VE are UV-absorbing acrylic sheets designed to protect sensitive items from harmful ultraviolet light. VA offers high optical clarity with UV protection, while VE provides enhanced UV…
Optional finishing services - toggle any you need.
Optional. Add drilled holes to your piece.
Acrylic only - optical-grade edge finish
Pick which edges to polish.
Flame polish is only available on acrylic.
Manual router - per-corner price scales with thickness
Rounded or 45 degree bevel - per-metre rate x thickness
Why choose PERSPEX® VA/VE Gallery Grade?
- PERSPEX ® VA – a colourless UV-absorbing acrylic that offers maximum optical clarity while still filtering harmful UV radiation, ideal for picture frames, artwork glazing, and applications requiring true-to-life colour viewing with protection.
- PERSPEX® VE – a slightly tinted acrylic with a higher UV-blocking capacity that absorbs up to 99.99% of UV light below 400 nm, tailored for safeguarding highly sensitive exhibits or artefacts from UV damage.
PERSPEX® VA/VE are specialist grades of genuine PERSPEX® cast acrylic engineered with built-in UV-absorbing properties for high-performance glazing and display applications. These acrylic sheets combine the trusted durability, optical quality, and ease of fabrication of standard PERSPEX® with enhanced UV protection, making them ideal where protection from ultraviolet light is essential.
Two variants are available:
Both VA and VE maintain excellent surface quality, weather resistance, and long-term performance. They are easy to cut, shape, drill, and machine, and are supplied with protective film to keep surfaces pristine during fabrication.
Common applications: protective glazing for art and heritage displays, museum cases, internal and external windows, retail displays, architectural panels, shopfitting features, and other environments where UV protection and optical clarity are priorities.
Ready to order your PERSPEX® VA/VE Gallery Grade?
Cut to size, precision finished and dispatched Australia-wide. Not sure which material suits your job? We'll help you choose the right one.
Technical Specifications
| Material Type | Cell Cast Acrylic (PMMA) |
| Brand | PERSPEX® |
| Grade | VA / VE – Gallery Grade |
| Optical Clarity | Excellent (≈92% light transmission for clear) |
| Surface Finish | High-gloss, exhibition-quality |
| Density | ~1.19 g/cm³ |
| Tensile Strength | ~70 MPa |
| Flexural Strength | ~110 MPa |
| Maximum Continuous Service Temp | ~80–90 °C |
| Vicat Softening Temperature | ~105 °C |
| UV Resistance | Excellent (won’t yellow under normal exposure) |
| Weather Resistance | Excellent – suitable for long-term indoor & outdoor use |
| Chemical Resistance | Good resistance to dilute acids and alkalis; poor to solvents |
Certifications & Downloads
Frequently Asked Questions
What is PERSPEX® VE Gallery Grade?
It is a premium UV-filtering acrylic sheet designed for picture framing, galleries, museums, and display cases where artwork protection and optical clarity matter.
What does “VE” mean?
VE refers to UV-filtering. The sheet blocks up to ~99% of harmful UV radiation below approximately 380 nm, helping reduce fading and degradation of artwork and photographs.
How does it compare to standard clear acrylic?
Standard acrylic offers little UV protection. VE Gallery Grade significantly reduces UV exposure while maintaining high clarity.
Is this the same as anti-reflective (AR) acrylic?
No. VE Gallery Grade does not have an anti-reflective coating. It prioritizes UV protection, not glare reduction. If glare control is critical, AR products are more suitable.
Is it suitable for museum or archival use?
Yes. It is commonly used in galleries and museums for framing valuable or sensitive works where UV protection is required.
What are common applications?
-
Fine art framing
-
Photography and prints
-
Museum display cases
-
Archival and collectible protection
Need this custom cut or fabricated?
Send us your drawing (DXF, DWG, PDF, EPS, STEP) and we'll quote your PERSPEX® VA/VE Gallery Grade to spec.
