Technical Specifications
| Material Type | High Density Polyethylene (HDPE) |
| Colour | Yellow |
| Density | ~0.95 g/cm³ |
| Tensile Strength | ~25–30 MPa |
| Flexural Strength | ~30–40 MPa |
| Impact Resistance | Excellent |
| Working Temperature Range | -50°C to +80°C |
| Vicat Softening Temperature | ~130°C |
| UV Resistance | Good |
| Chemical Resistance | Excellet |
| Weather Resistance | Excellent |
Certifications & Downloads

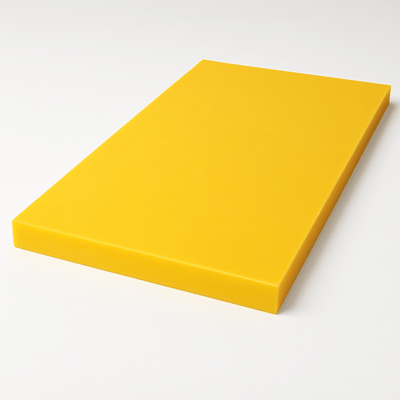

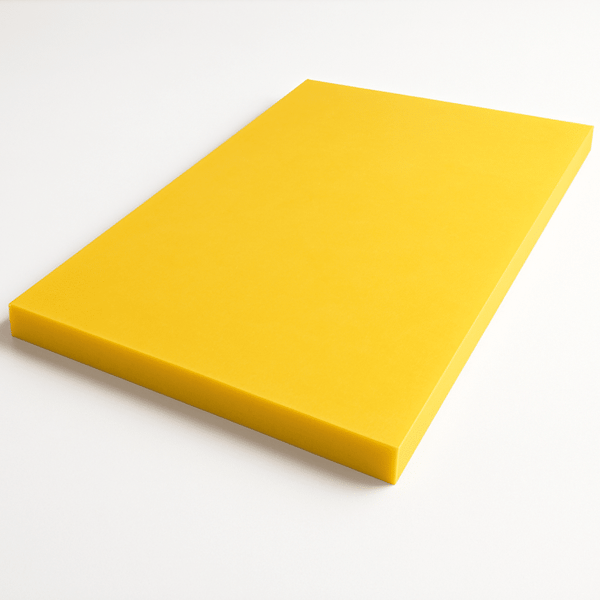

Yellow HDPE Sheet
Yellow HDPE sheets are available in thicknesses from 6 mm to 20 mm and come in a standard sheet size of 3000 mm × 1500 mm. Designed for industrial and mining applications, these sheets offer…
Optional finishing services - toggle any you need.
Optional. Add drilled holes to your piece.
Acrylic only - optical-grade edge finish
Pick which edges to polish.
Flame polish is only available on acrylic.
Manual router - per-corner price scales with thickness
Rounded or 45 degree bevel - per-metre rate x thickness
Why choose Yellow HDPE Sheet?
Yellow HDPE Sheet – Mining Grade
Key Features:
Applications:
- High impact strength – withstands heavy-duty impact and abrasion.
- Chemical and corrosion resistant – performs reliably in harsh mining conditions.
- UV-stabilised – suitable for outdoor use with excellent colour retention.
- Lightweight and easy to fabricate – can be cut, welded, or machined to specification.
- Distinct yellow colour – enhances visibility for safety and equipment identification.
- Mining equipment liners and guards
- Conveyor chute and hopper linings
- Protective barriers and machine covers
- Wear-resistant components in processing plants
Our Yellow HDPE (High-Density Polyethylene) sheets are engineered for the demanding conditions of mining and industrial environments. Known for their impact resistance, chemical stability, and long service life, these sheets are ideal for use in wear liners, chute linings, guards, and protective panels in processing and materials handling applications.
Available in various thicknesses and sheet sizes to suit site requirements. Contact us for custom cutting or fabricated components in yellow HDPE mining grade.
Ready to order your Yellow HDPE Sheet?
Cut to size, precision finished and dispatched Australia-wide. Not sure which material suits your job? We'll help you choose the right one.
Related Products
Technical Specifications
| Material Type | High Density Polyethylene (HDPE) |
| Colour | Yellow |
| Density | ~0.95 g/cm³ |
| Tensile Strength | ~25–30 MPa |
| Flexural Strength | ~30–40 MPa |
| Impact Resistance | Excellent |
| Working Temperature Range | -50°C to +80°C |
| Vicat Softening Temperature | ~130°C |
| UV Resistance | Good |
| Chemical Resistance | Excellet |
| Weather Resistance | Excellent |
Certifications & Downloads
Frequently Asked Questions
What is yellow HDPE mining specification sheet?
Yellow HDPE mining spec sheet is a high-visibility polyethylene sheet formulated for heavy-duty mining and quarry applications. It’s commonly used for wear liners, chute linings, guards, skirting, and impact protection where durability, chemical resistance, and visibility are required.
Why is yellow HDPE used in mining environments?
Yellow HDPE improves safety through high visibility in low-light, dusty, or underground conditions. It also offers strong impact resistance, low moisture absorption, and good abrasion resistance, making it suitable for harsh mining environments.
What are the key properties of mining spec HDPE sheet?
Mining spec HDPE sheet provides high impact strength, good abrasion resistance, excellent chemical resistance, and low friction. It does not rot, swell, or corrode and performs reliably in wet, muddy, or chemically exposed conditions.
Is yellow HDPE mining sheet UV stabilised?
What temperature range can mining spec HDPE handle?
Need this custom cut or fabricated?
Send us your drawing (DXF, DWG, PDF, EPS, STEP) and we'll quote your Yellow HDPE Sheet to spec.
