Technical Specifications
| Material Type | Ultra High Molecular Weight Polyethylene (UHMWPE) |
| Density | ~0.93 g/cm³ |
| Molecular Weight | 3 – 6 million g/mol |
| Water Absorption | < 0.01% |
| Tensile Strength | 20 – 25 MPa |
| Tensile Modulus | 600 – 1,000 MPa |
| Impact Resistance | Exceptional (virtually unbreakable) |
| Abrasion Resistance | Excellent (superior to HDPE) |
| Wear Resistance | Outstanding |
| Operating Temperature Range | -200°C to +80°C |
| Common Colours | Natural (white), Black, Green |
Certifications & Downloads
UHMWPE Rods

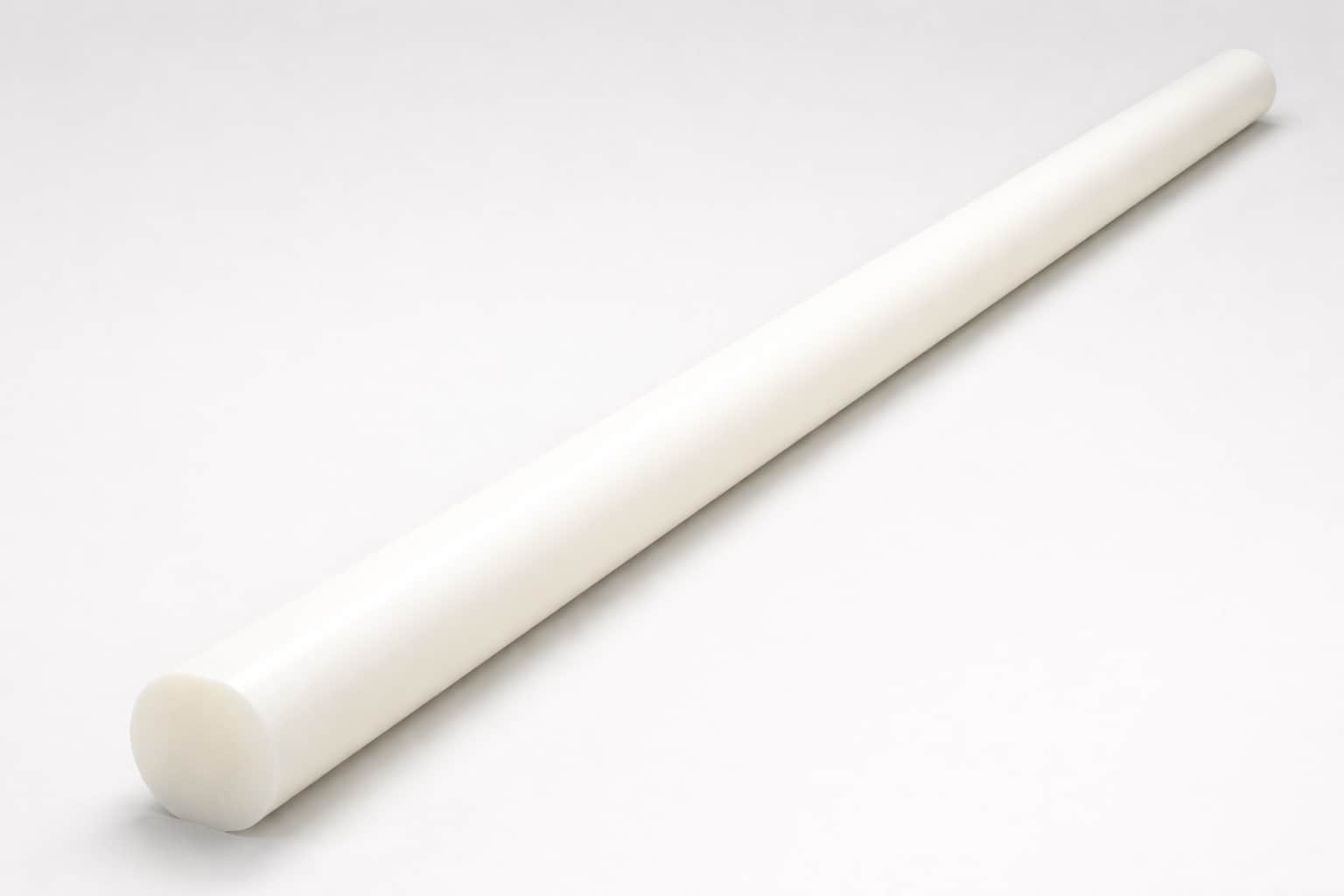

UHMWPE Rod – White (20mm to 300mm Diameter)
Per-piece pricing for off-the-shelf lengths. Need a custom cut or a shorter length? Email us a quote.
Why choose UHMWPE Rods?
UHMWPE Rod | Durable Plastic Rod for High-Wear Applications

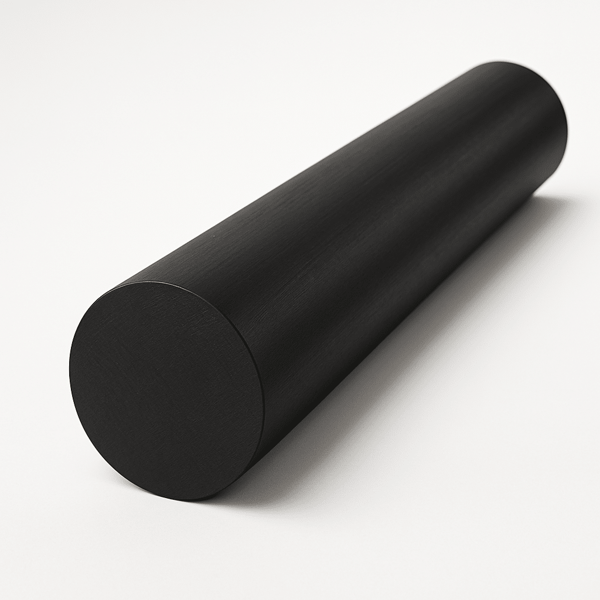

UHMWPE Rod Colours
- Natural
- Black
- Blue
- Green
Shop high-performance UHMWPE (Ultra High Molecular Weight Polyethylene) Rods in natural white, perfect for demanding industrial, commercial, and food-grade applications. Known for its exceptional wear resistance, low friction, and high impact strength, UHMWPE rod is a top choice for components exposed to sliding, impact, or abrasive conditions.
✅ Low friction – ideal for sliding parts
✅ High wear and impact resistance – outlasts many plastics
✅ Chemical and moisture resistant – suitable for harsh environments
✅ Food-grade compliant – safe for food contact applications
✅ Easy to machine – ideal for CNC and manual processing
Common uses: bushings, wear strips , guides, conveyor components, marine parts, and custom machined components .
Ready to order your UHMWPE Rods?
Cut to size, precision finished and dispatched Australia-wide. Not sure which material suits your job? We'll help you choose the right one.
Technical Specifications
| Material Type | Ultra High Molecular Weight Polyethylene (UHMWPE) |
| Density | ~0.93 g/cm³ |
| Molecular Weight | 3 – 6 million g/mol |
| Water Absorption | < 0.01% |
| Tensile Strength | 20 – 25 MPa |
| Tensile Modulus | 600 – 1,000 MPa |
| Impact Resistance | Exceptional (virtually unbreakable) |
| Abrasion Resistance | Excellent (superior to HDPE) |
| Wear Resistance | Outstanding |
| Operating Temperature Range | -200°C to +80°C |
| Common Colours | Natural (white), Black, Green |
Certifications & Downloads
Frequently Asked Questions
What is UHMWPE rod and what is it used for?
What are the key properties of UHMWPE rod?
What diameters and lengths are available for UHMWPE rod?
Is UHMWPE rod suitable for machining?
Can UHMWPE rod be used outdoors?
How does UHMWPE rod compare to HDPE or nylon rod?
What temperature range can UHMWPE rod handle?
UHMWPE rod typically operates between approximately -150°C and +80°C. It maintains toughness at very low temperatures but softens at elevated temperatures, limiting use in high-heat environments.
Is UHMWPE rod the same material as Polystone or Tivar?
Need this custom cut or fabricated?
Send us your drawing (DXF, DWG, PDF, EPS, STEP) and we'll quote your UHMWPE Rods to spec.
What you can make with UHMWPE Rods
UHMWPE Wear Pads
Custom UHMWPE wear pads and slide plates engineered for chutes, conveyors and material-handling equipment. Exceptional abrasion resistance, self-lubricating properties and CNC machined to your drawings with fixing holes.
Mining Machine Guards & Safety Screens
Heavy-duty polycarbonate and HDPE machine guards for mining equipment, crushers, conveyors, and processing plants. Impact-resistant, cut to size, and delivered Australia-wide.
Bearings & Rollers
Turned nylon, acetal, and UHMWPE bearings and guide rollers.
Cutting Boards
Food-grade HDPE boards for commercial kitchens and processing.
Air Conditioner Covers
Custom cut acrylic, polycarbonate and HDPE air conditioner covers. Screen outdoor units, protect from weather and keep airflow clear. Cut to size, shipped Australia-wide.
Chemical Tanks
PVC fabricated tanks for aggressive chemical storage and dosing.
Conveyor Components
Wear-resistant guides, idlers, and return rollers from engineering rod.
Bus & Coach Parts
Machined rod and tube for grab rails, bushings, and transit fittings.
