Technical Specifications
| Base Polymer | Polypropylene (PP), closed-cell foam with solid skins |
| Density | Approx. 0.7 g/cm3 (foamed core with solid skin) |
| Tensile Strength | 18 MPa |
| Thermal Expansion | 120-190 um/m.K |
| Min Operating Temperature | -10 C |
| Max Operating Temperature | 90 C |
| Chemical Resistance | High |
| Moisture Absorption | 0% (closed-cell structure, does not absorb water) |
| Surface Finish | Scratch-resistant embossed texture on both sides |
| UV Resistance | Good (suitable for outdoor applications) |
| Food Grade | No |
| Drinking Water Approved | No |
| Recyclable | Yes (100% polypropylene, fully recyclable) |
| Available Thicknesses | 10mm, 12mm, 15mm, 19mm |
| Standard Sheet Size | 2440 x 1220mm |
| Available Colours | Black Textured, White Textured |

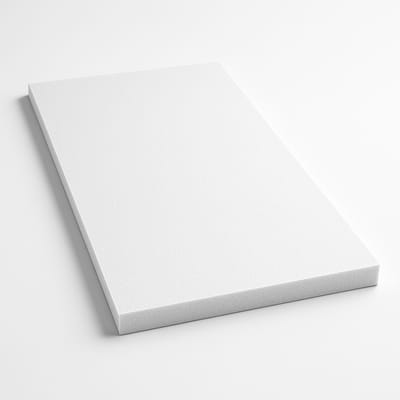

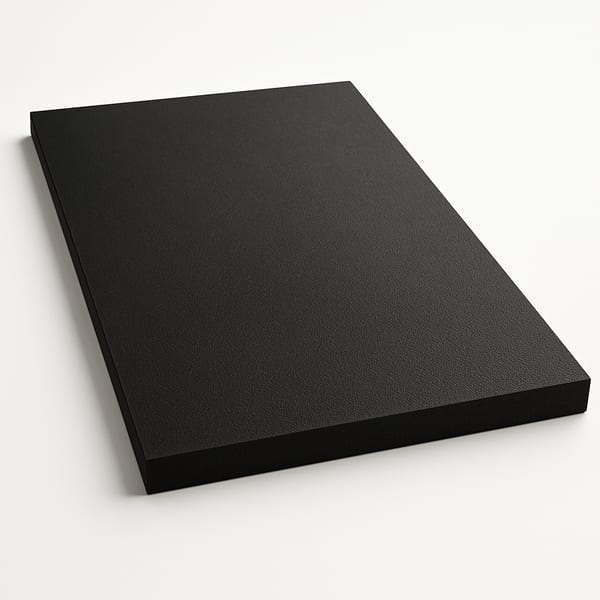

Foamlite® Uniboard ECO (PP) Sheet
Lightweight timber replacement. Closed-cell foamed polypropylene with solid skins and a durable embossed surface.
Optional finishing services - toggle any you need.
Optional. Add drilled holes to your piece.
Acrylic only - optical-grade edge finish
Pick which edges to polish.
Flame polish is only available on acrylic.
Manual router - per-corner price scales with thickness
Rounded or 45 degree bevel - per-metre rate x thickness
Why choose Foamlite® Uniboard ECO (PP) Sheet?
Key features
Common uses
Options and availability
Technical quick facts
FAQ
Closed-cell core. No water uptake. Won’t rot or swell. High chemical resistance.
Embossed, scratch-resistant skins on both faces. Easy to clean.
Operates from -10°C to 90°C. Not food-grade or drinking-water approved.
Lighter than plywood. Designed as a wood substitute. Fastens like timber.
Outdoor cabinetry, van and caravan linings, marine fit-outs, partitions, retail displays, animal enclosures, and general joinery where timber swells or degrades.
Sheet size: 2440 × 1220 mm (standard).
Typical thicknesses: 10mm. Colours: black,
Cut-to-size, routing and fabrication available on request.
Base polymer: foamed PP with solid skins.
Tensile strength ≈ 18 MPa; linear thermal expansion 120–190 µm/m·K.
Can I screw into it? Yes. Screw retention and machinability are comparable to plywood. Pre-drill.
Is it UV stable? Suitable for outdoor use; colour is through-body. Check project exposure and colour choice.
Ready to order your Foamlite® Uniboard ECO (PP) Sheet?
Cut to size, precision finished and dispatched Australia-wide. Not sure which material suits your job? We'll help you choose the right one.
