Nylon Sheet

Free Shipping for orders over $500 + GST. (Brisbane, Sydney, Melbourne Postcodes)

4.8

Why choose Nylon Sheet?

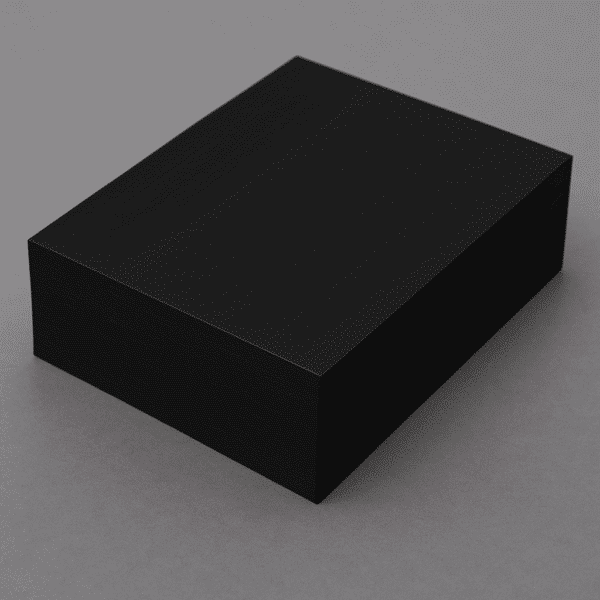

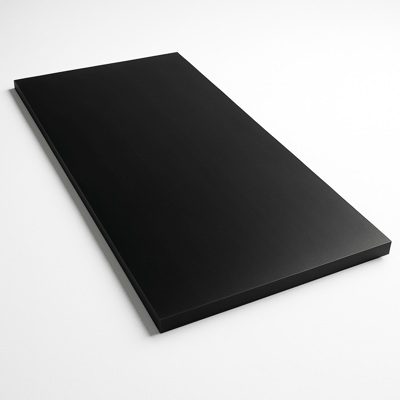

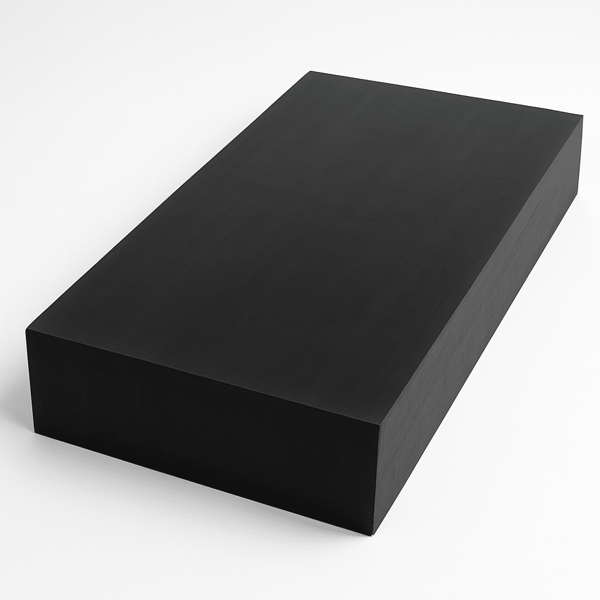

Black Cast
Natural Cast (White)

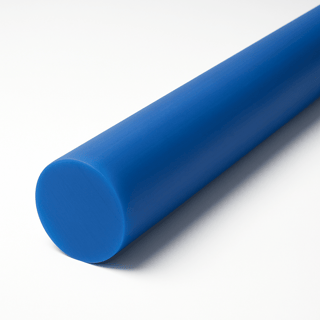

Blue Heat Stabilised
Yellow Oil Filled
Grey Wax Filled

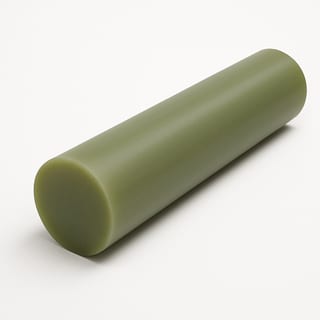

Natural Etralon LFX
Excellent wear and abrasion resistance
High mechanical strength and toughness
Low friction – ideal for moving parts

Resistant to oils, greases, and fuels
Easily machined and fabricated

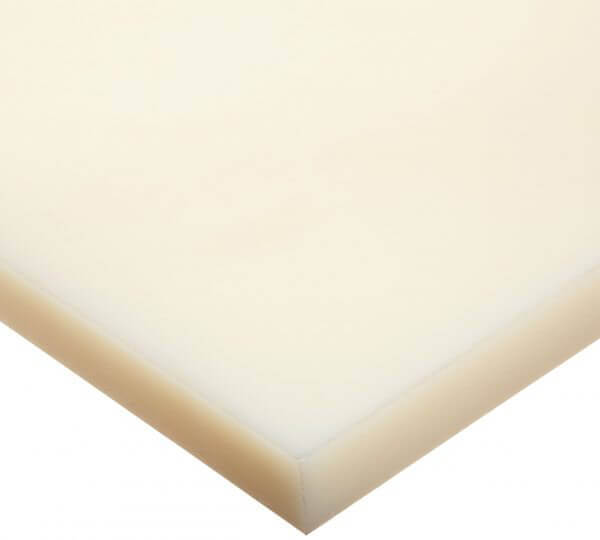

Nylon Sheet – High-Performance Engineering Plastic

Our Nylon Sheets offer outstanding strength, durability, and wear resistance, making them the go-to choice for demanding industrial and mechanical applications. With excellent impact resistance and a low coefficient of friction, nylon is ideal for high-load and high-wear components such as gears, bushings, bearings, and wear strips .

Lightweight yet incredibly tough, nylon is easy to machine and maintains its performance under stress, making it a reliable solution for both dynamic and static applications.

Colours

Key Features:

Available in a range of thicknesses and sheet sizes. Perfect for custom-cut parts and CNC machining projects.

Technical Specifications

Polymer Type	Polyamide 6 (PA6 / Nylon 6)
Density	1.13–1.15 g/cm³
Water Absorption (24h @ 23°C)	~1.3%
Tensile Strength	70–85 MPa
Tensile Modulus	2.5–3.0 GPa
Elongation at Break	30–60%
Impact Strength (Charpy, notched)	5–8 kJ/m²
Continuous Service Temp	-40°C to +100°C
Short-Term Max Temp	Up to 160°C
Melting Point	~220°C
Coefficient of Friction (dry)	0.25–0.4
UV Resistance	Poor (not UV stabilised unless specified)
Chemical Resistance	Good against oils, fuels, greases; poor vs strong acids/alkalis

Certifications & Downloads

Technical Data Sheet

Material Safety Data Sheet (PDF)

Frequently Asked Questions

What are nylon sheets used for?

Nylon sheets are engineering plastics used for wear-resistant and load-bearing applications. Common uses include wear strips, slide pads, bushes, gears, rollers, machine guards, and structural components. They are widely used in manufacturing, mining, food processing, and materials handling where strength, toughness, and abrasion resistance are required.

What grades of nylon sheet are available?

Nylon sheets are commonly available in Nylon 6, Nylon 66, oil-filled nylon, and glass-filled nylon. Each grade offers different properties such as higher strength, improved wear resistance, reduced friction, or increased stiffness. The correct grade depends on load, speed, moisture exposure, and operating environment.

Is nylon sheet strong enough for structural applications?

Yes. Nylon sheet has high tensile strength, good impact resistance, and excellent fatigue performance. It is suitable for structural and mechanical parts under moderate to high loads. However, it is not a metal substitute in high-temperature or extreme load applications without proper engineering assessment.

Does nylon absorb moisture?

Yes. Nylon is hygroscopic and absorbs moisture from the air, which can cause slight dimensional changes and reduced stiffness. This is normal for nylon and should be considered for tight-tolerance components. Nylon 66 absorbs less moisture than Nylon 6, and oil-filled grades are more dimensionally stable.

Can nylon sheet be machined?

Nylon sheet machines easily using standard woodworking or metalworking tools. It can be cut, drilled, milled, and turned with clean results. Sharp tools and correct feeds are important to avoid melting or chatter. Nylon is commonly CNC machined into precision components.

Is nylon sheet suitable for outdoor use?

Nylon can be used outdoors but is not UV-stabilised by default. Long-term UV exposure can cause surface degradation and colour changes. For permanent outdoor applications, UV-stabilised plastics or protective coatings should be considered, or nylon should be shielded from direct sunlight.

How does nylon compare to UHMWPE or acetal?

Nylon is stronger and stiffer than UHMWPE but has higher friction. Compared to acetal (POM), nylon is tougher and more impact-resistant but less dimensionally stable. Material selection depends on wear, load, moisture exposure, and tolerance requirements.

What sizes and thicknesses do nylon sheets come in?

Nylon sheets are available in a wide range of thicknesses, typically from 6 mm up to 100 mm or more, depending on grade. Standard sheet sizes vary by supplier, and custom cutting to size is commonly available for trade and industrial customers.

Applications
