Nylon Cast Natural Rod 100mm O/D x 1000mm

Technical Specifications

Polymer Type	Polyamide 6 (PA6 / Nylon 6)
Density	1.13–1.15 g/cm³
Water Absorption (24h @ 23°C)	~1.3%
Tensile Strength	70–85 MPa
Tensile Modulus	2.5–3.0 GPa
Elongation at Break	30–60%
Continuous Service Temp	-40°C to +100°C
Melting Point	~220°C
Coefficient of Friction (dry)	0.25–0.4
UV Resistance	Poor (not UV stabilised unless specified)
Chemical Resistance	Good against oils, fuels, greases; poor vs strong acids/alkalis

Certifications & Downloads

Material Safety Data Sheet (PDF) Technical Data Sheet (PDF)

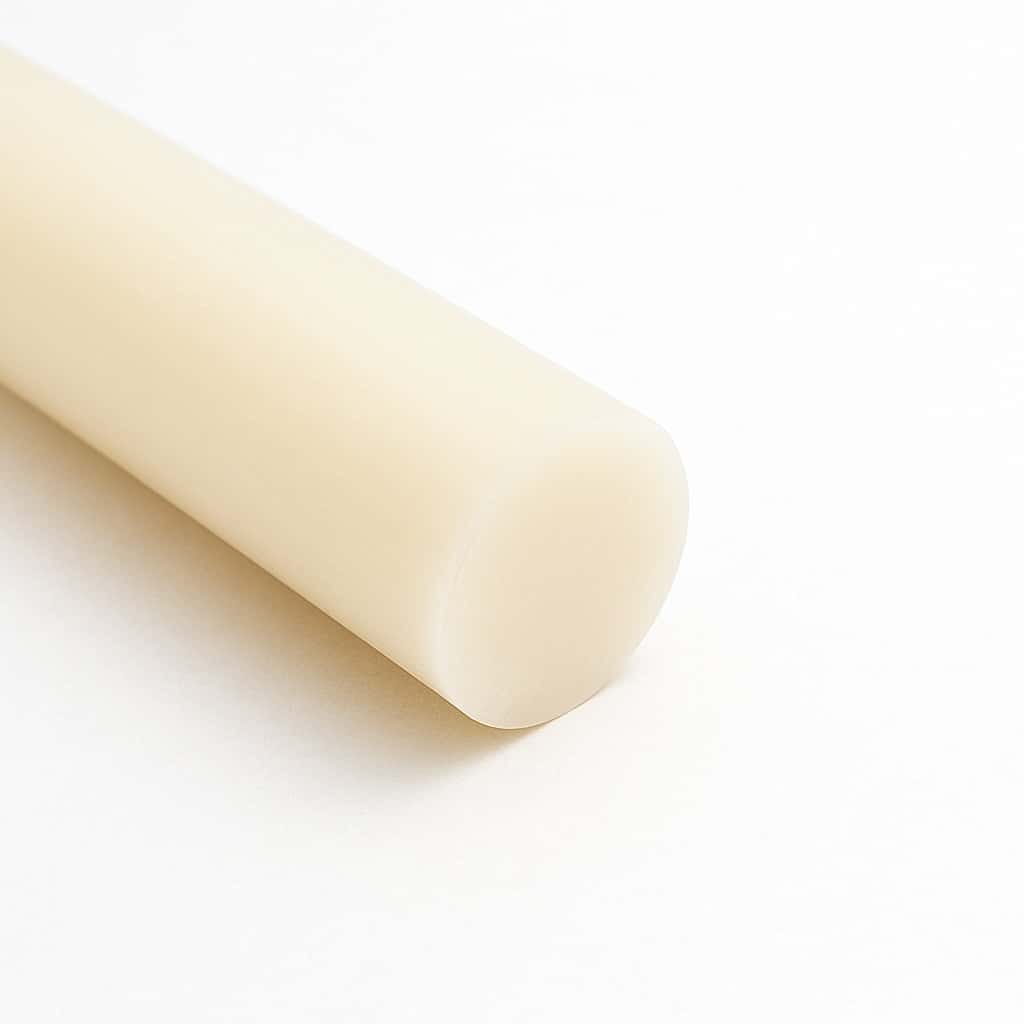

Natural Nylon Rod

4.8 (45 Google Reviews)

Natural Nylon Rod (30 mm – 300 mm Diameter)

$0.00 + GST

inc. GST $0.00

19 rod sizes in stock

Diameter (OD)

Length

Fast Shipping 2-4 business days

No Minimum Off-the-shelf sizes

Quality Assured Industry-leading

Available variants

19 rod sizes in stock

Cast Natural 19 sizes

ODLengthSKUPrice ex GST

30mm 1000mm RD-NYLON-CAST-NAT-30MM-1M $31.68 + GST
40mm 1000mm RD-NYLON-CAST-NAT-40MM-1M $51.05 + GST
50mm 1000mm RD-NYLON-CAST-NAT-50MM-1M $79.78 + GST
60mm 1000mm RD-NYLON-CAST-NAT-60MM-1M $105.43 + GST
70mm 1000mm RD-NYLON-CAST-NAT-70MM-1M $143.68 + GST
80mm 1000mm RD-NYLON-CAST-NAT-80MM-1M $187.52 + GST
90mm 1000mm RD-NYLON-CAST-NAT-90MM-1M $237.29 + GST
100mm 1000mm RD-NYLON-CAST-NAT-100MM-1M $292.95 + GST
110mm 1000mm RD-NYLON-CAST-NAT-110MM-1M $292.88 + GST
120mm 1000mm RD-NYLON-CAST-NAT-120MM-1M $348.36 + GST
125mm 1000mm RD-NYLON-CAST-NAT-125MM-1M $378.18 + GST
130mm 1000mm RD-NYLON-CAST-NAT-130MM-1M $408.99 + GST
140mm 1000mm RD-NYLON-CAST-NAT-140MM-1M $474.27 + GST
150mm 1000mm RD-NYLON-CAST-NAT-150MM-1M $544.63 + GST
160mm 1000mm RD-NYLON-CAST-NAT-160MM-1M $603.36 + GST
170mm 1000mm RD-NYLON-CAST-NAT-170MM-1M $680.89 + GST
180mm 1000mm RD-NYLON-CAST-NAT-180MM-1M $763.44 + GST
250mm 600mm RD-NYLON-CAST-NAT-250MM-600MM $707.51 + GST
300mm 600mm RD-NYLON-CAST-NAT-300MM-600MM $1,203.70 + GST

Per-piece pricing for off-the-shelf lengths. For custom cuts or shorter lengths, email us a quote request .

Why choose Natural Nylon Rod?

High tensile strength and toughness
Excellent wear and abrasion resistance
Low friction – ideal for moving parts
Good resistance to oils, greases, and fuels
Easy to machine and fabricate

Nylon Rod – Strong, Wear-Resistant & Easy to Machine

Nylon Rod is a high-performance engineering plastic ideal for precision- machined components . It offers exceptional mechanical strength, wear resistance, and low friction properties, making it perfect for demanding applications such as bushings, gears, rollers, and bearings.

With excellent impact strength and dimensional stability, nylon rod performs reliably under load and is easy to machine into complex parts.

Key Features:

Available in a wide range of diameters and lengths to suit your custom project or OEM requirement.

Technical Specifications

Polymer Type	Polyamide 6 (PA6 / Nylon 6)
Density	1.13–1.15 g/cm³
Water Absorption (24h @ 23°C)	~1.3%
Tensile Strength	70–85 MPa
Tensile Modulus	2.5–3.0 GPa
Elongation at Break	30–60%
Continuous Service Temp	-40°C to +100°C
Melting Point	~220°C
Coefficient of Friction (dry)	0.25–0.4
UV Resistance	Poor (not UV stabilised unless specified)
Chemical Resistance	Good against oils, fuels, greases; poor vs strong acids/alkalis

Certifications & Downloads

Material Safety Data Sheet (PDF)

Technical Data Sheet (PDF)

Frequently Asked Questions

What is natural nylon rod used for?

Natural nylon rod is used to machine wear-resistant and load-bearing components. Typical applications include bushes, rollers, gears, spacers, wear pads, guides, and structural parts. It is commonly used in manufacturing, materials handling, mining, and general engineering where toughness and abrasion resistance are required.

What grade is natural nylon rod?

Natural nylon rod is typically Nylon 6 or Nylon 66 in its unfilled, natural (off-white) form. The exact grade depends on the manufacturer and application. Nylon 66 generally offers higher strength and better dimensional stability, while Nylon 6 provides improved impact resistance.

Is natural nylon rod strong enough for mechanical applications?

Yes. Natural nylon rod has high tensile strength, good impact resistance, and excellent fatigue performance. It is suitable for many mechanical and structural components, though it is not a direct replacement for metal in high-temperature or extreme load applications.

Does natural nylon rod absorb moisture?

Yes. Nylon absorbs moisture from the air, which can cause slight swelling and changes in mechanical properties. This is a known characteristic of nylon and should be considered for tight-tolerance parts. Nylon 66 absorbs less moisture than Nylon 6.

Can natural nylon rod be machined?

Yes. Natural nylon rod machines well using standard lathes and CNC equipment. It can be turned, drilled, milled, and tapped. Sharp tools, correct feeds, and proper support help achieve clean finishes and accurate dimensions.

How does natural nylon rod compare to acetal or UHMWPE rod?

Nylon rod is stronger and more impact-resistant than UHMWPE but has higher friction. Compared to acetal (POM), nylon is tougher but less dimensionally stable due to moisture absorption. Material choice depends on load, wear, friction, and tolerance requirements.

Is natural nylon rod suitable for outdoor use?

Natural nylon rod can be used outdoors but is not UV-stabilised as standard. Long-term exposure to sunlight can cause surface degradation. For permanent outdoor applications, UV-stabilised materials or shielding should be considered.

Can natural nylon rod be cut to length or machined to order?

Yes. Natural nylon rod can be supplied cut to length or machined to customer drawings. CNC turning and milling services are commonly used to produce finished components, reducing material waste and machining time.

Applications
